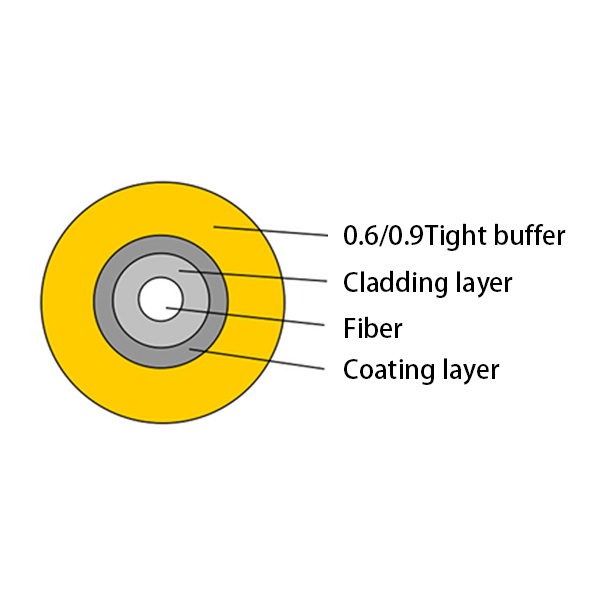

Tight Buffer Fibre (GJFJV)
Tight-buffered fiber is the basic element of various indoor cables. Because of different buffer materials, the relevant indoor cables made out of tight-buffered fibers can meet different mechanical and environmental requirements, for example, large tensile (crush), high or low temperature, frequent bends, low smoke, no corrosive, environmental, field use, distribution cabinet (frame) and other generic use, etc.
  • Technical Parameters
  • Applications
  • Features

Technical   Parameters
TBF   Codle Fibre Coating Diameter   um TBF Diameter um TBF Weight kg/km Tensile strength Crush Resistance Bending Radius Coating Strip Force N
Long/Short term N Long/Short   term N/100mm Dynamic/Static   mm
TBF-I 245±7 900±50 0.9 3.0/6.0 100/500 20D/10D ≤13.3
TBF-II 500±50 900±50 0.7 3.0/6.0 100/500 20D/10D ≤13.3


Optical   Characteristics
Fiber type Attenuates Full injection   bandwidth (OFL) Effective mode   bandwidth 10G Ethernet link   length SX Minimum Bending   Radius
Conditions 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm /
Typical value Maximum value Typical   value Maximum value
Unit db/km db/km db/km db/km MHZ.km MHZ.km m mm
G652D 0.36/0.22 0.5/0.4 / / / / / 16
G657A1 0.36/0.22 0.5/0.4 / / / / / 10
G657A2 0.36/0.22 0.5/0.4 / / / / / 7.5
50/125 / / 3.0/1.0 3.5/1.5 ≥500/500 / / 30
62.5/125 / / 3.0/1.0 3.5/1.5 ≥200/500 / / 30
OM3 / / 3.0/1.0 3.5/1.5 ≥1500/500 ≥2000 ≤300 30
OM4 / / 3.0/1.0 3.5/1.5 ≥3500/500 ≥4700 ≤550 30
BI-OM3 / / 3.0/1.0 3.5/1.5 ≥1500/500 ≥2000 ≤300 7.5
BI-OM4 / / 3.0/1.0 3.5/1.5 ≥3500/500 ≥4700 ≤550 7.5


Indoor cable

Making jumper,pigtail

Data communication

 Good uniformity of the outer diameter of tight buffer fibre and excellent strippability

Good perfomance of flame-retardant

Low induced attenuation within the operating temperture range

 Excellent geometrcal dimension of the fibre
