Mini Bare Fiber Distribution Fiber Optic Cable
  • Mini Bare Fiber Distribution Fiber Optic Cable
  • Mini Bare Fiber Distribution Fiber Optic Cable
Mini Bare Fiber Distribution Fiber Optic Cable
Mini Bare Fiber Distribution Fiber Optic Cable
Mini Bare Fiber Distribution Fiber Optic Cable

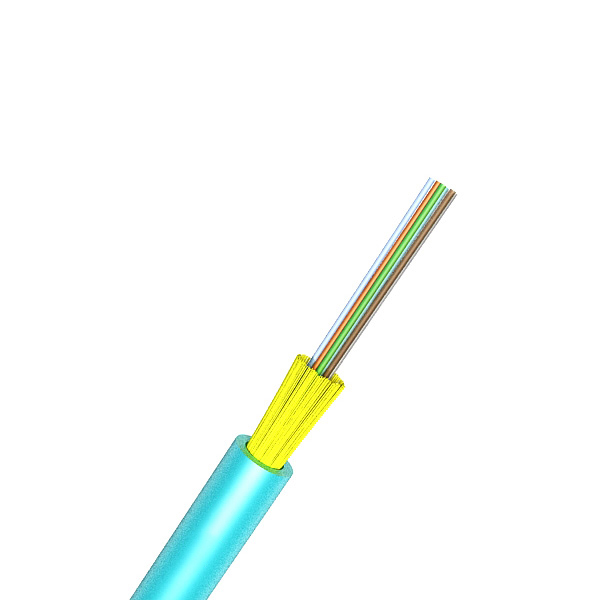

Break-out indoor cable use simplex cableas subunit. A fiber reinforced plastic(FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the core. The cable is completed with a PVC or LSZH ( Low smoke, Zero halogen, Flame-retardant ) jacket.

  • Technical Parameters
  • Applications
  • Features

Cable Mechanical characteristic

Items  Cable diameter Weight
  24 cores     10 54.00kg/km
 48 cores     10 78.00kg/km
72 cores     11.5 90.00kg/km
  96 cores     12.5 115.00kg/km
  144 cores     14.5 135.00kg/km
Storage temperature(℃) -20+60
Min Bending Radius(mm) Long term  10D
Min Bending
Radius(mm)
Short term 20D
Min allowable
Tensile Strength(N)
Long term  1000
Min allowable
Tensile Strength(N)
Short term 2000
    Crush Load (N/100mm) Long term 1000
    Crush Load (N/100mm) short term 2000


Fiber characteristic

Fiber style Unit SM
 G652
SM
G652D
MM
50/125
MM
62.5/125
MM
OM3-300
condition nm 1310/1550 1310/1550 850/1300 850/1300 850/1300
attenuation dB/km ≤3.0/1.0 ≤3.0/1.0
0.36/0.23 0.34/0.22 3.0/1.0 ---- ----
Dispresion 1550nm Ps/(nm*km) ---- ≤18 ---- ---- Dispresion
1625nm Ps/(nm*km) ---- ≤22 ---- ----
Bandwith 850nm MHZ.KM ---- ---- ≧400  ≧160  Bandwith
1300nm MHZ.KM ---- ---- ≧800  ≧500
Zero dispersion wavelength nm 1300-1324 ≧1302,
≤1322
---- ---- ≧ 1295,
≤1320
Zero dispresion slope nm ≤0.092 ≤0.091 ---- ---- ----
PMD Maximum Individual Fibr ≤0.2 ≤0.2 ---- ---- ≤0.11
PMD Design Link Value Ps(nm2*k
m)
≤0.12 ≤0.08 ---- ---- ----
Fibre cutoff wavelength λc nm ≧ 1180,
≤1330
≧1180,
≤1330
---- ---- ----
Cable sutoff
wavelength λcc
nm ≤1260 ≤1260 ---- ---- ----
MFD 1310nm um 9.2+/-0.4 9.2+/-0.4 ---- ---- ----
1550nm um 10.4+/-0.8 10.4+/-0.8 ---- ---- ----
Numerical
Aperture(NA)
---- ---- 0.200+/
-0.015
0.275+/-0.
015
0.200+/-0
.015
Step(mean of bidirectional
measurement)
dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Irregularities over fiber
length and point
dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10


· Used in indoor cabling, especially used as breakout cable;

· As pigtail of communication equipment;

· Suitable for communication equipment served;

· All-purpose mini indoor cable

· Can use MPO, MTP connector.

· Indoor distribution, suitable for make patch cord and pigtail;

· Multi cable with independent strength member;

· Non-metal central strenght member;

· High strength kevlar yarn member.
