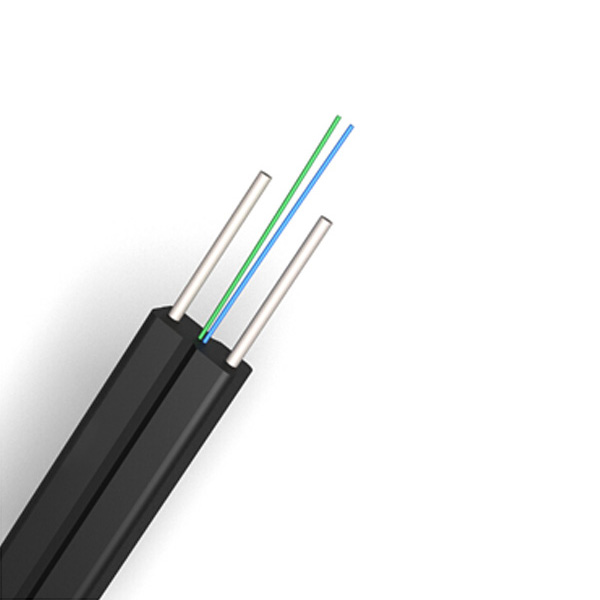

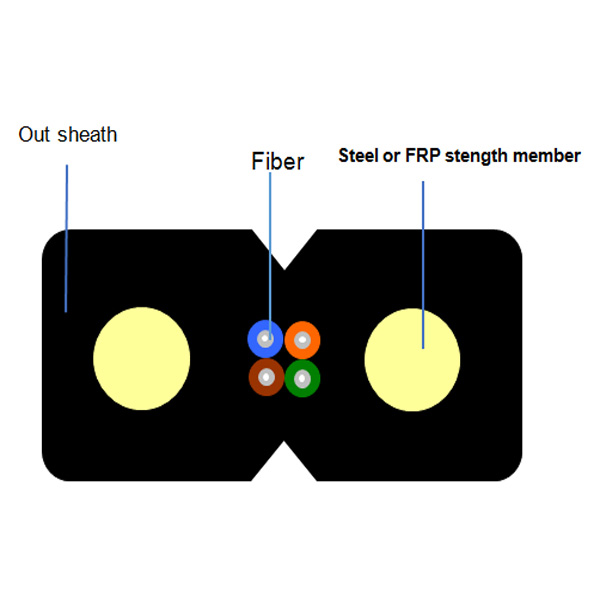

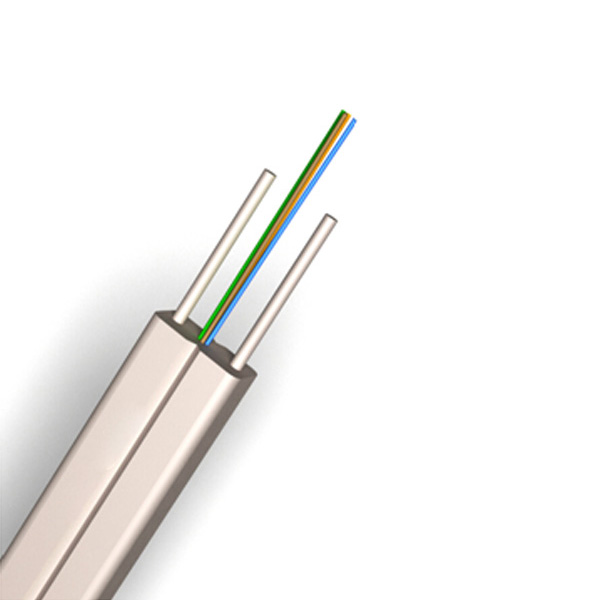

The optical fibre unit is positioned in the centre.Two parallel Fibre Reinforced Plastics(FRP)are placed at the two sides.Then the cable is completed with a black or color LSZH sheath.
| Technical Parameters | ||||||||
| Cable code | Fibre Count | Cable Size(mm) | Cable Weight(Ref)(kg/km) | Tensile strength | Crush Resistance | Bending Radius | ||
| Long/Short term N | Long/Short term N/100mm | Dynamic/Static mm | ||||||
| GJXFH-1Xn | 1 | (2.0±0.1)×(3.0±0.1) | 8 | 40/80 | 500/1000 | 15/30 | ||
| GJXFH-2Xn | 2 | (2.0±0.1)×(3.0±0.1) | 8.2 | 40/80 | 500/1000 | 15/30 | ||
| GJXFH-2Xn | 4 | (2.0±0.1)×(3.0±0.1) | 8.2 | 40/80 | 500/1000 | 15/30 | ||
| GJXFH-4Xn | 4 | (2.0±0.1)×(6.0±0.1) | 15 | 65/120 | 500/1000 | 15/30 | ||
| GJXFH-6Xn | 6 | (2.5±0.1)×(3.5±0.1) | 15 | 65/120 | 500/1000 | 15/30 | ||
| GJXFH-8Xn | 8 | (2.5±0.1)×(3.5±0.1) | 15 | 65/120 | 500/1000 | 15/30 | ||
| GJXFH-12Xn | 12 | (2.5±0.1)×(3.5±0.1) | 15 | 65/120 | 500/1000 | 15/30 | ||
| Optical Characteristics | ||||||||
| Fiber type | Attenuates | Full injection bandwidth (OFL) | Effective mode bandwidth | 10G Ethernet link length SX | Minimum Bending Radius | |||
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
| Typical value | Maximum value | Typical value | Maximum value | |||||
| Unit | db/km | db/km | db/km | db/km | MHZ.km | MHZ.km | m | mm |
| G657A1 | 0.36/0.22 | 0.5/0.4 | / | / | / | / | / | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | / | / | / | / | / | 7.5 |
| OM3 | / | / | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | / | / | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
· Adopted to indoor distribution;
· As pigtail of communication equipment;
· Suitable for communication equipment;
· Can be installed conveniently.
Special low-bend-sensitivity fibre provides high bandwjdth and excellent communication transmission property
Two parallel FRP etrength members ensure good performance of crush resistance to protect the fibre
Simple etructure,light weight and high practicability
Novel flutedesign,easily strip and splice,simplify the installation and maintenance
Low smoke,zero helogen and flame retardant sheath
